Coming Soon...

Drifter 20/24"  - Drifter 24/26"

CONVERTIBLE

CONVERTIBLE

Last season we showed our initial designs for our upcoming full suspension bike.  Based on rider feedback we've now refined that design into two separate bikes. These frames offer the highest performance available for light weight riders.

Drifter 20/24

(Scroll down for 24/26")

 ready for the next step?

The Flow Drifter 20/24" offers unique design elements unavailable in any other adult or kids bike frame. It's adjustable headtube and dropouts allows the frame to convert between 20" & 24" wheels while maintaining proper geometry and sizing.



 Kids between 42" (106cm) - 65"(165cm) can now ride and progress on one bike thats truly designed with them in mind. The Drifter's super low standover inspires confidence in challenging terrain while its geometry handles anything thrown at it.

Suspension kinematics, leverage ratio and custom shock valving have been optimized for light weight riders.

One Frame converts to two sizes

20" Geometry

Click to expand

24" Geometry

Click to expand

Compare the Drifter to anything else out there? You'll find there's nothing else like it

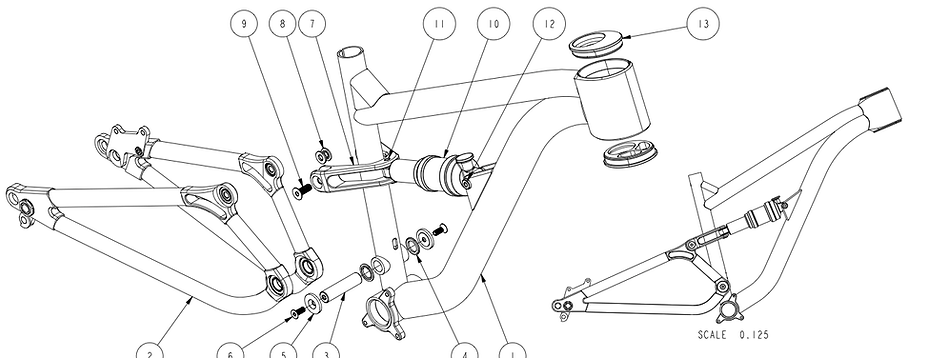

  • Adjustable Reach - The Drifter's unique headtube and headset can be adjusted by 25mm to lengthen the front of the bike as the rider grows.

  • Adjustable Dropouts - The Drifter's rear swingarm and dropout adjusts by 50mm to accept 20" or 24" wheels. 142 spacing.

  • Geometry - Designed to inspire confidence and offer stability in challenging terrain. The 76 degree seat tube angle creates an efficient pedaling position while the 67 degree headtube is ready to tackle progressively challenging terrain.

  • Rear Suspension - The linkage driven rear swing arm has been engineered to offer a progressive leverage ratio optimized for light weight riders.  Rear travel adjusts between 100 and115mm depending on wheelsize and axle placement.  Main pivot kinematics are designed around a 30T  single chainring.

Designed for the next generation of riders

2o/24"

Drifter 24/26"

(See above for 20/24")

 Fully Adjustable

The Flow Drifter 24/26"  will carry kids from youth into adult sized bikes. Similar to the 20/24", the larger drifter gives no compromises while fully adjusting for riders from 50" (127cm) to 67"(177cm). The headtube and custom headset adjusts by 25mm to grow the front end of the bike. The rear dropouts adjusts by 25mm to truly adapt the geometry for 24" or 26" wheels.

Suspension kinematics, leverage ratio and custom shock valving have been optimized for light weight , advancing riders. The Drifter's geometry is designed around todays top performing adult enduro bikes, shrunken down for kids. It's 76 degree seat tube offers an efficient pedaling position while the 67 degree headtube can be adjusted for any type of terrain. Adjustable travel from 115-122mm make this a truly capable All Mountain - DH machine for upcoming riders.

One Frame converts to two sizes

24" Geometry

Click to expand

26" Geometry

Click to expand

They used to follow you,

get ready to keep up !

  • Adjustable Reach - The Drifter's unique headtube and headset can be adjusted by 25mm to lengthen the front of the bike as the rider grows.

  • Adjustable Dropouts - The Drifter's rear swingarm and dropout adjusts by 25mm to accept 24" or 26" wheels while maintaining proper geometry . 142 rear spacing accepts common hubs and wheelsets while providing for 10/11/12 speed drivetrains.

  • Geometry - Designed to inspire confidence and offer stability in challenging terrain. The 76 degree seat tube angle creates an efficient pedaling position while the 67 degree headtube is ready to tackle progressively challenging terrain.

  • Rear Suspension - The linkage driven rear swing arm has been engineered to offer a progressive leverage ratio optimized for light weight riders.  Rear travel adjusts between 115 and 122mm depending on wheelsize and axle placement.  Main pivot kinematics are designed around a 32T  single chainring.

Designed for the next generation of riders

24/26"

If you want to find out more details about this new frame and how you can pre-order,

CONTACT US
