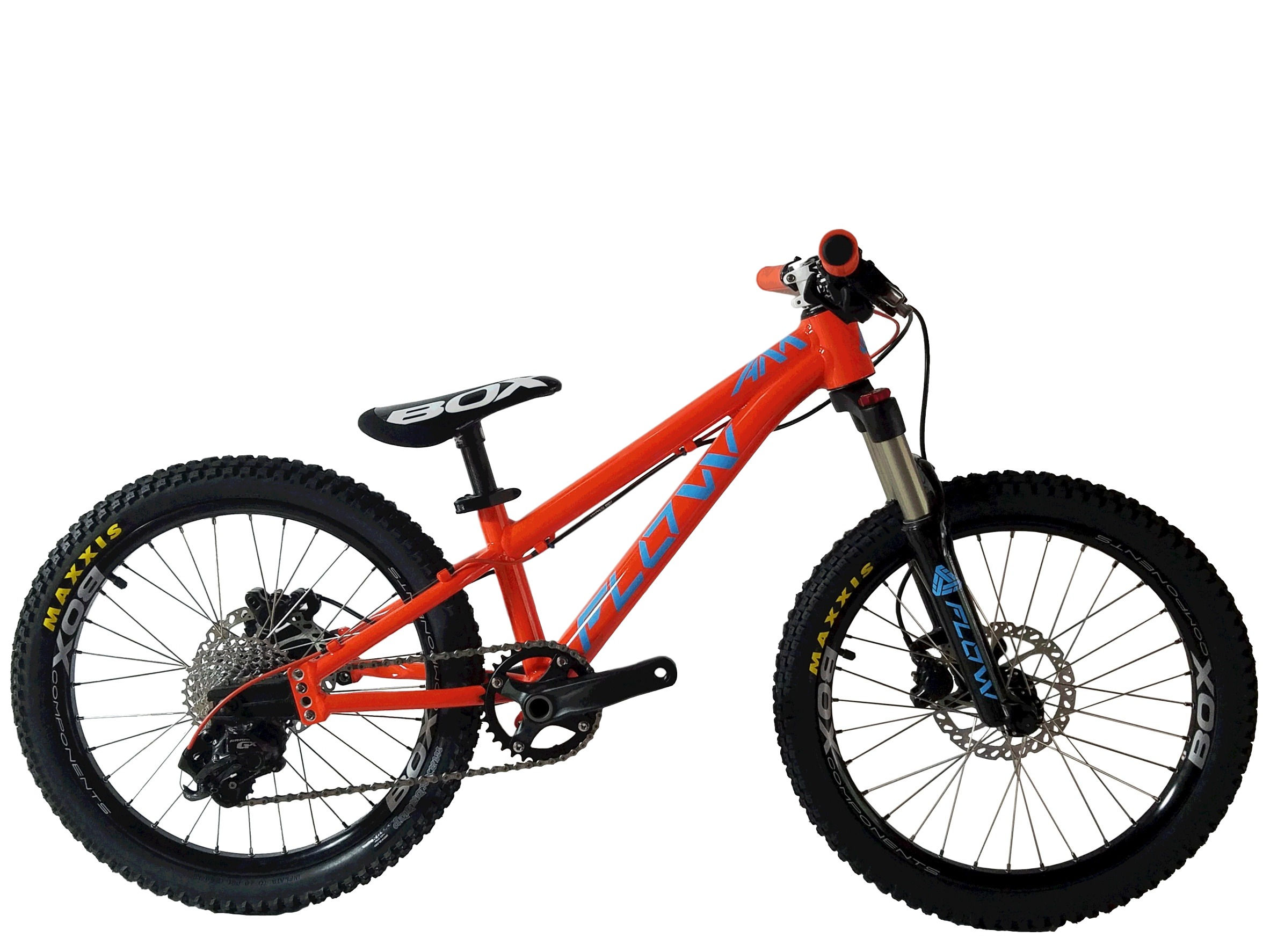

Flow 20" built with Carbon wheels / Parts

Flow 20" built with Carbon wheels / Parts

  • Weight - 20lb / 9.07 kg

  • Can convert between 16" & 20" frame and wheel sizing (with kit)

  • Can convert to single speed for dirt jumping.



*NoteThis bike has been updated to include our new Custom carbon wheelset, featuring 24 hole, 30mm wide carbon rims laced to Novatec hubs with interchangable axles.

 The frame features a wide array of progressive design elements including adjustable dropouts for 16" & 20" wheels. 1.5 degrees of adjustable geometry via dual dropout mounting positions. And the key feature which sets this frame apart from all others, an integrated eccentric headset system which truly allows the frame length to grow with your child. Custom tuned suspension and only the highest quality parts round out complete bikes. 3 frame color options and interchangeable Graphic color kits means every bike is as unique as the kid that designs it. Frames including dropouts and headset system weigh 2.11 lbs. Complete bikes weighs 21lb / 9.5 kg. This bikes comes setup with a wide range 10spd Sram GX drivetrain. The dropouts can pull horizontal tension which allows the bike to also be setup single speed for dirt jumping or bike park style riding.

Please note this frame is not carbon.



This bike includes

+ Carbon Wheelset

+ Carbon Handlebars and Seatpost. + SRAM GX - 10spd Rear Derailur + X-5 - index shifter + PG 1031, 11-36 10spd lightweight cassette + PG 1030, 10spd chain + Jagwire cable

  • Parts Specifications

    • X = same

    • At Flow we work hard to create the best bikes at the most accesible pricing. You've chosen our highest end build, the following upgrades are still available

    • 16" wheels and dropouts

    PART

    16/20"

    BASE

    16/20"

    10 SPD

    16/20"

    CARBON AM

    10 SPD

    Frame

    6061 Aluminum

    X

    X

    Fork

    80mm Travel

    Custom tuned

    X

    X

    Wheels

    Sealed hub

    Rim Varies

    X

    Novatec hubs

    Carbon Rim

    Cranks

    135mm, 2 piece

    hollow spindle

    X

    X

    Brakes

    Tektro Auriga WS

    Hydraulic

    Short Reach

    X

    Hayes hydraulic

    Prime CompX

    Drivetrain

    16T single speed

    GX 10spd

    GX 10spd

    Handlebars

    Answer

    Answer

    Answer

    Carbon

    Seatpost

    Race Face Alloy

    Race Face

    Alloy

    BOX integrated

    or SDG I beam

    Stem

    Answer ATAC

    30mm or 50mm

    X

    X

    Tires

    Maxxis

    Max Daddy

    X

    X

    Seat

    FLOW- FR

    X

    BOX / FLOW

    Grips

    Sensus

    X

    X

  • Geometry

    Geometry

    High / short

    Low / Long

    Headtube

    68'

    67'

    Seatube

    73'

    72'

    Reach

    301mm +/- 8mm

    301mm +/-8mm

    Effective

    Reach

    431 +/-8mm

    431 +/-8mm

    Chainstay

    16": 280mm

    +/-30mm

    20": 330mm

    +/-30mm

    Standover

    16" wheels -

    15"inseam

    20" wheels

    19" inseam

    Front Center

    516mm

    524mm

    Rear Center

    280mm

    320mm



$1,600.00Price
